Quectel EM160R-GL - Trådløs mobilmodem

4G LTE Advanced - M.2 Card - 1 Gbps - for (WWAN-ready): ThinkPad P14s Gen 2 20VX, 20VY; P15 Gen 2 20YQ, 20YR; P15s Gen 2 20W6, 20W7; T14 Gen 2 20W0, 20W1; T15 Gen 2 20W4, 20W5
SKI Ikke på lager pt.
Producent Lenovo
Varenummer 4XC1D69579
  • log ind for pris
  • Information
    • Supports DFOTA
    • Supports DTMF
    • Supports MIMO
    • USB 2.0 high-speed interface
    • Multi-constellation GNSS receiver

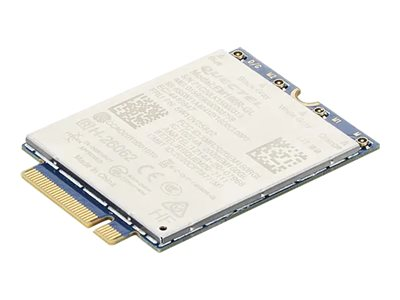

    Quectel EM160R-GL is an LTE-A Cat 16 module in an M.2 form factor which is designed to meet the 3GPP Release 14 specification. It supports maximum downlink rates of 1 Gbps and uplink rates of 150 Mbps.

    EM160R-GL is designed for the global market and covers nearly all the mainstream carriers worldwide. The module supports Qualcomm IZat location technology Gen9 (GPS, GLONASS, BeiDou and Galileo), while integrated GNSS greatly simplifies product design, and provides quicker, more accurate and more dependable positioning capability.

    A rich set of internet protocols, industry-standard interfaces and abundant functionalities (PCIe interface/USB drivers for Windows, Linux, Android and optional built-in eSIM) allow the module to support a wide range of applications such as industrial routers, home gateways, STB, industrial laptops, consumer laptops, industrial PDAs, rugged tablet PCs, and digital signage.
  • Specifikation
  • Downloadbare filer
