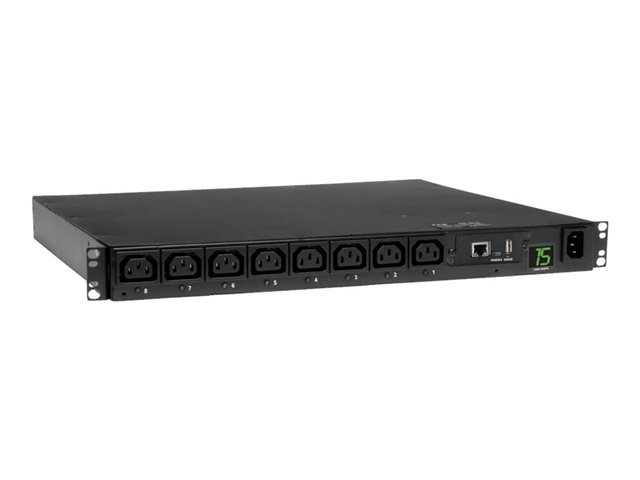

Eaton 2.5kW Single-Phase 208/230V Switched PDU

LX Platform, 8 C13 Outlets, C14 Input 2m Cord, 1U Rack-Mount, TAA - Horizontal rackmount - strømfordelingsenhed (rackversion) - 15 A - AC 208/230/240 V - 2.9 kW - Ethernet 10/100 - input: IEC 60320 C14 - output-stikforbindelser: 8 (power IEC 60320 C13) - 1U
SKI Ikke på lager pt.
Producent Eaton
Varenummer PDUMH15HVNET
  • log ind for pris
  • Information
    • 208/230/240V 15A maximum capacity (agency de-rated to 12 amps) Switched, Metered and Monitored Power Distribution Unit (PDU) with built-in web / network interface in 1U rackmount form factor
    • Includes C13 line cord and 8 C13 controllable outlets
    • Supports individually controllable output receptacles, current metering, network monitoring and remote control via built-in web / network monitoring and control card
    • Offers the ability to turn on, turn off, recycle or lock-out power to each individual PDU receptacle on a programmable or real-time basis
    • Switchable outlets enable a number of advanced networking abilities, such as remote reboot on-demand of locked IT equipment, custom power-on / power-off outlet sequencing, automatic load-shedding of optional loads during power failures and disabling unused outlets to prevent the connection of unauthorized equipment loads
    • Remote interface provides data regarding input power conditions, load level and individual outlet power status via secure network or web browser interface
    • Supports notification and logging of all major power events and user specified alarm thresholds
    • DHCP / Manual configuration support provides the ability to have network settings automatically assigned to the card, or manually assigned via permanent IP addresses
    • 10/100 Mbps auto-sensing allows optimal communication compatibility with your current 10/100 Base-T network
    • Real-time clock support maintains the time of day and date even if the PDU is shut down and unpowered
    • 2-tier level access allows an administrator and a guest to log into the web browser for monitoring and/or management of all intelligent PDUs and similarly equipped UPS systems
    • Alert notifications via email or SNMP traps give users the added advantage of having an immediate event notification
    • Protocols supported include HTTP, HTTPS, PowerAlert Network Management System, SMTP, SNMPv1, SNMPv2, Telnet, FTP, DHCP, BOOTP, NTP
    • Front panel ammeter with displays whole PDU power consumption
    • On initial power-up, outlets are automatically energized at 250 millisecond intervals to prevent inrush-related equipment interaction and mains circuit overloads
    • Included cord retention brackets keep vital network equipment plugged in and continuously powered
    • 1U rackmount installation supported in 2 or 4 post racks
    • Circuit breaker free format prevents power interruptions due to tripped breakers while still providing mains panel protection from overloads and short circuit fault conditions
    Eaton 2,5 kW Single-Phase 208/230V Switched PDU - LX Platform er designet til at give pålidelig strømfordeling og samtidig sikre effektiv styring af dit udstyr i et rackmonteret miljø. Med understøttelse af AC-spændingskrav på 208/240 V og i stand til at styre en effekt på 2,9 kW håndterer denne enhed forskellige enheder problemfrit. Den har otte IEC 60320 C13-udtag, der giver tilstrækkelig tilslutning til flere enheder, samtidig med at den er beskyttet af en afbryder for øget sikkerhed.

    Denne strømfordelingsenhed indeholder protokoller til fjernstyring, herunder SNMP, Telnet og HTTP/HTTPS, hvilket muliggør effektiv netværksovervågning og -kontrol. Ethernet-styringsinterfacet sikrer problemfri kommunikation, mens den indbyggede strømmåler og LED-indikatorerne gør det nemt at overvåge strømstatus. Med et robust design, der overholder NOM-, IEC 60950- og RoHS-standarderne, er Eatons Switched PDU et pålideligt valg til forskellige driftsmiljøer og fungerer optimalt inden for et fugtighedsområde på 0-95 % og temperaturer mellem 0 °C og 40 °C.
