- On-Die termination (ODT)
- 16 internal banks, 4 groups of 4 banks each
- Bi-directional differential data strobe
- 8-bit pre-fetch
- Burst Length (BL) switch on-the-fly BL8 or BC4 (Burst Chop)
- Height 1.34"" (34 mm), with heatsink

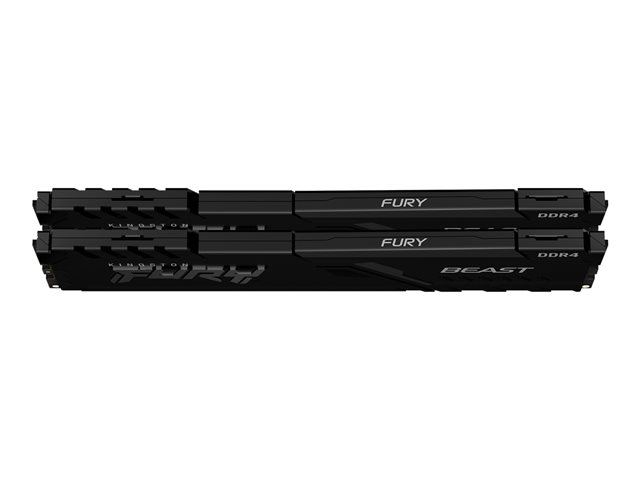

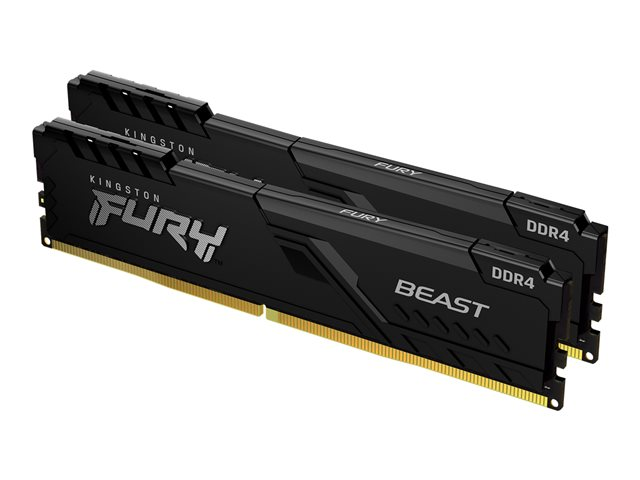

Kingston FURY KF436C17BBK2/16 is a kit of two 1G x 64-bit (8 GB) DDR4-3600 CL17 SDRAM (Synchronous DRAM) 1Rx8, memory module, based on eight 1G x 8-bit FBGA components per module. Each module kit supports Intel Extreme Memory Profiles (Intel XMP) 2.0. Total kit capacity is 16 GB. Each module has been tested to run at DDR4-3600 at a low latency timing of 17-21-21 at 1.35 V. The SPDs are programmed to JEDEC standard latency DDR4-2400 timing of 17-17-17 at 1.2 V. Each 288-pin DIMM uses gold contact fingers.
