Broadcom BCM957504-N1100G - Netværksadapter - PCIe 4.0 x16 - 100 Gigabit QSFP56 x 1

Producent	Brocade Communications Systems
Type	Netværksadapter

• Single-port pluggable media interface, which is compatible with a QSFP56/QSFP28/QSFP+ optical transceiver or a copper direct-attach cable
• Industry's most secure PCIe adapter solution leveraging Broadcom's BroadSAFE technology
• Supports 50G PAM-4 and 25G NRZ signaling
• Multi-Host up to four hosts
• Fully compliant with the SFF-8402 standard
• X16 PCI Express 4.0 compliant
• SR-IOV with up to 1k virtual functions (VFs)
• Function-Level Reset (FLR) support
• TruFlow flow processing engine
• Virtual Network Termination - VXLAN, NVGRE, Geneve, GRE encap/decap
• VSwitch Acceleration
• Tunnel-aware stateless offloads
• DCB support - PFC, ETS, QCN, DCBx
• RDMA over Converged Ethernet (RoCE)
• Network Controller Sideband Interface (NC-SI)
• SMBus 2.0
• MCTP over SMBus
• Jumbo frames up to 9 KB
• Advanced congestion avoidance
• Multiqueue, NetQueue, and VMQ
• IPv4 and IPv6 offloads
• TCP, UDP, and IP checksum offloads
• Large send offload (LSO)
• Large receive offload (LRO)
• TCP segmentation offload (TSO)
• Receive-side scaling (RSS)
• Transmit-side scaling (TSS)
• VLAN insertion/removal
• Interrupt coalescing
• Network boot - PXE, UEFI
• ISCSI boot
• Wake-on-LAN (WOL)
• MSI and MSI-X
• OCP 3.0 FRU support

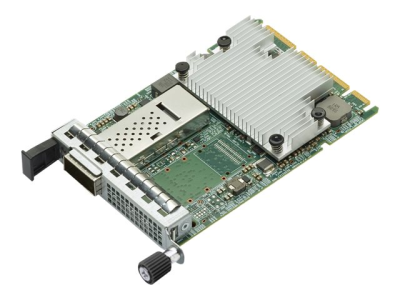

Broadcom BCM957504-N1100G er en single-port 100 Gb/s PCI Express 4.0 x16 netværksadapter designet til Open Compute Project (OCP) 3.0 Design Specification i lille formfaktor med et QSFP56 netværksstik. Adapteren understøtter QSFP56/QSFP28/QSFP+ optiske moduler og kobberkabler med direkte tilslutning. Netværksadapteren bruger Broadcom BCM57504 100GbE MAC-controller med en integreret single-channel 100GbE SFI transceiver.
