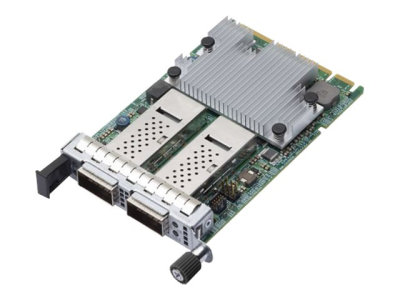

Broadcom NetXtreme E-Series N2100G - Netværksadapter - PCIe 4.0 x16 lavprofil - 100 Gigabit QSFP56 x 2

Producent	Brocade Communications Systems
Type	Netværksadapter

• Supports 50G PAM-4 and 25G NRZ signaling
• Multi-Host up to four hosts
• Fully compliant with the SFF-8402 standard
• SR-IOV with up to 1k virtual functions (VFs)
• Function-Level Reset (FLR) support
• TruFlow flow processing engine
• Tunnel-aware stateless offloads
• DCB support - PFC, ETS, QCN, DCBx
• RDMA over Converged Ethernet (RoCE)
• Network Controller Sideband Interface (NC-SI)
• SMBus 2.0
• MCTP over SMBus
• Jumbo frames up to 9 KB
• Advanced congestion avoidance
• Multiqueue, NetQueue, and VMQ
• IPv4 and IPv6 offloads
• TCP, UDP, and IP checksum offloads
• Large send offload (LSO)
• Large receive offload (LRO)
• TCP segmentation offload (TSO)
• Receive-side scaling (RSS)
• Transmit-side scaling (TSS)
• VLAN insertion/removal
• Interrupt coalescing
• Network boot - PXE, UEFI
• Wake-on-LAN (WOL)
• MSI and MSI-X
• OCP 3.0 FRU support

The Broadcom BCM957508-N2100G is a dual-port 100 Gb/s PCI Express 4.0 x16 Network Adapter designed to the Open Compute Project (OCP) 3.0 Design Specification in small form factor with two QSFP56 network connectors. The adapter supports QSFP56/QSFP28/QSFP+ optical modules and copper direct-attach cables. The network adapter uses the Broadcom BCM57508 200GbE MAC controller with an integrated dual-channel 100GbE SFI transceiver.
