Broadcom NetXtreme E-Series N210P - Netværksadapter - OCP 3.0 - 1Gb Ethernet / 10Gb Ethernet SFP+ x 2

Producent	Brocade Communications Systems
Type	Netværksadapter

• Dual-port pluggable media interface, which can connect to a 10G SFP+ optical transceiver or a copper direct attach cable
• Fully compliant with the SFF-8402 standard
• X8 PCI Express 3.0 compliant
• SR-IOV with up to 128 virtual functions (VFs)
• Function-Level Reset (FLR) support
• TruFlow flow processing engine
• Virtual Network Termination - VXLAN, NVGRE, Geneve, GRE encap/decap
• VSwitch Acceleration
• Tunnel-aware stateless offloads
• DCB support - PFC, ETS, QCN, DCBx
• RDMA over Converged Ethernet (RoCE)
• Network Controller Sideband Interface (NC-SI)
• SMBus 2.0
• MCTP over SMBus
• PCIe-based UART and KCS
• Jumbo frames up to 9 KB
• Advanced congestion avoidance
• Multiqueue, NetQueue, and VMQ
• IPv4 and IPv6 offloads
• TCP, UDP, and IP checksum offloads
• Large send offload (LSO)
• Large receive offload (LRO)
• TCP segmentation offload (TSO)
• Receive-side scaling (RSS)
• Transmit-side scaling (TSS)
• VLAN insertion/removal
• Interrupt coalescing
• Network boot - PXE, UEFI
• ISCSI boot
• Wake-on-LAN (WOL)
• MSI and MSI-X
• Conforms to the OCP 3.0 Design Specification Version 1.00

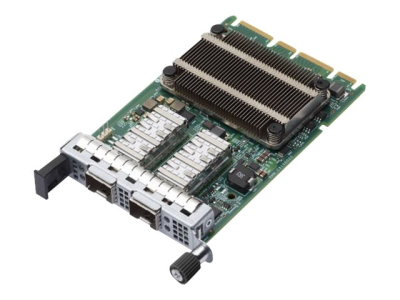

The Broadcom BCM957412N4120C is a dual-port 10 Gb/s PCI Express 3.0 x8 network adapter designed to the Open Compute Project (OCP) 3.0 Design Specification in small form factor with two SFP+ network connectors. The adapter supports SFP+ optical modules and copper direct attach cables. The network adapter uses the Broadcom BCM57412 25GbE MAC controller with an integrated dual-channel 10GbE SFI transceiver.
