| Generelt |
| Enhedstype | UPS - rackversion |
| Højde (rackenheder) | 2U |
| Farve | Sort |
| Strømenhed |
| UPS-teknologi | Line-interactive |
| Indgangspænding | AC 230 V |
| Indgangspændingsområde | AC 160 - 286 V |
| Indgangspændingsområde (justerbar) | AC 150 - 300 V |
| Med frekvens | 50/60 Hz |
| Nødvendig frekvens | 50/60 Hz ± 3Hz |
| Input-stik | 1 x strøm IEC 60320 C14 |
| Detaljer om strømudgangskonnektorer | 4 x power IEC 60320 C13
2 x IEC-lus |
| Udgangspænding | AC 230 V 50/60 Hz |
| Strømkapacitet | 500 Watt / 750 VA |
| Bølgeform udgang | Sinewave |
| Overspændingsafledning | Ja |
| Batteri |
| Teknologi | Blysyre |
| Run Time (op til) | 6 min. ved fuld last
5 min. ved 500 Watts
24 min. ved 200 Watts |
| Genopladningstid | 3 timer |
| Egenskaber | Vedligeholdelsesfri, lukket, læksikker |
| Netværk |
| Grænseflade til fjernstyring | Ethernet, RS-232, USB |
| Ekspansion / Konnektivitet |

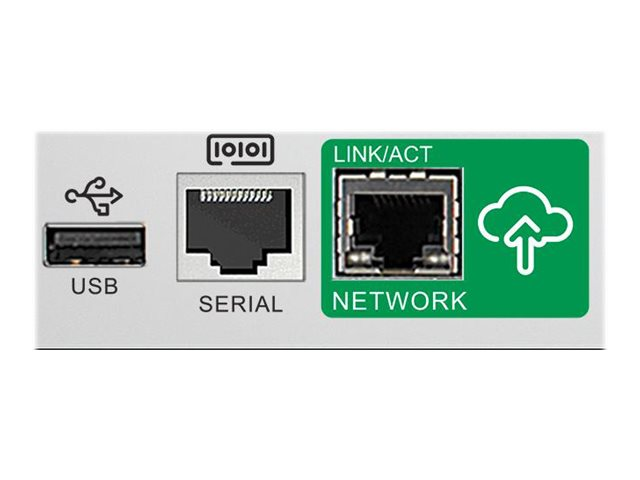

| Interface | 1 x administration (RS-232) - RJ-45
1 x administration (USB) - 4 pin USB Type B
Administration (Ethernet) - RJ-45 |
| Ekspansionsåbninger | 1 (total) / 1 (fri) x SmartSlot |
| Diverse |
| Egenskaber | Automatic Voltage Regulation (AVR), LCD-skærm, hørlig alarm, energimåler, LED-indikatorer |
| Overensstemmelsesstandarder | VDE, EN 62040-2, RCM, EN 62040-1 |
| Programmer / Systemkrav |
| Med software | APC PowerChute Business Edition |
| Miljømæssige parametre |
| Min. driftstemperatur | 0 °C |
| Maks. driftstemperatur | 40 °C |
| Fugtighedsgrad ved brug | 0 - 95% |
| Lydudbredelse | 42 dBA |
| Mål og vægt |
| Bredde | 43.2 cm |
| Dybde | 40.9 cm |
| Højde | 8.6 cm |
| Vægt | 21.23 kg |
| Oplysninger om kompatibilitet |
| Designet for | P/N: ACCS1000, ACCS1001, ACCS1002, ACCS1003, ACCS1004, ACCS1005, ACCS1006, ACCS1007, ACDC1015, ACDC1016, ACDC1017, ACDC1019, ACDC1020, ACDC1021, ACDC2513, ACF002, ACF102BLK, ACF400, ACF600, AP5017, AP5602, AP5606, AP5607, AP5616, AP92200, AP9290, AR100, AR100HD, AR202, AR203A, AR204A, AR2101, AR2102BLK, AR2144BLK, AR2145BLK, AR2200, AR2280, AR2400, AR2400FP1, AR2401, AR2407, AR2480, AR2487, AR2487G, AR2500, AR2507, AR2580, AR2587, AR2900, AR2901, AR3000, AR3100, AR3100G, AR3100SP, AR3100SP1, AR3100SP2, AR3100TAA, AR3100W, AR3100X609, AR3100X610, AR3100X617, AR3101, AR3103SP, AR3104, AR3104SP1, AR3105, AR3105SP, AR3105W, AR3106SP, AR3107, AR3107G, AR3107SP, AR3107X609, AR3107X610, AR3107X617, AR3130, AR3140, AR3140G, AR3140W, AR3150, AR3150SP, AR3150SP1, AR3150SP2, AR3150W, AR3150X609, AR3150X610, AR3150X617, AR3155, AR3155SP, AR3155W, AR3157, AR3157SP, AR3157X609, AR3157X610, AR3157X617, AR3200, AR3300, AR3300G, AR3300SP, AR3300W, AR3300X609, AR3300X610, AR3300X617, AR3305, AR3305SP, AR3305W, AR3307, AR3307SP, AR3307W, AR3307X609, AR3307X610, AR3307X617, AR3340, AR3340G, AR3340W, AR3347, AR3350, AR3350SP, AR3350W, AR3350X609, AR3350X610, AR3350X617, AR3355, AR3355SP, AR3355W, AR3357, AR3357SP, AR3357X609, AR3357X610, AR3357X617, AR4018, AR4018A, AR4018I, AR4018IA, AR4018IX429, AR4018IX431, AR4018IX432, AR4018SP, AR4018SPX429, AR4018SPX431, AR4018SPX432, AR4018X429, AR4018X431, AR4018X432, AR4024, AR4024A, AR4024I, AR4024IA, AR4024IX429, AR4024IX431, AR4024IX432, AR4024SP, AR4024SPX429, AR4024SPX431, AR4024SPX432, AR4024X429, AR4024X431, AR4024X432, AR4038, AR4038A, AR4038I, AR4038IA, AR4038IX429, AR4038IX431, AR4038IX432, AR4038X432, AR7050, NBWL0356A |
|
