| Generelt |
| Enhedstype | UPS - rackversion |
| Højde (rackenheder) | 2U |
| Strømenhed |
| UPS-teknologi | On-line |
| Indgangspænding | AC 230 V |
| Indgangspændingsområde | AC 160 - 286 V |
| Indgangspændingsområde (justerbar) | AC 150 - 300 V |
| Med frekvens | 50/60 Hz |
| Nødvendig frekvens | 50/60 Hz |

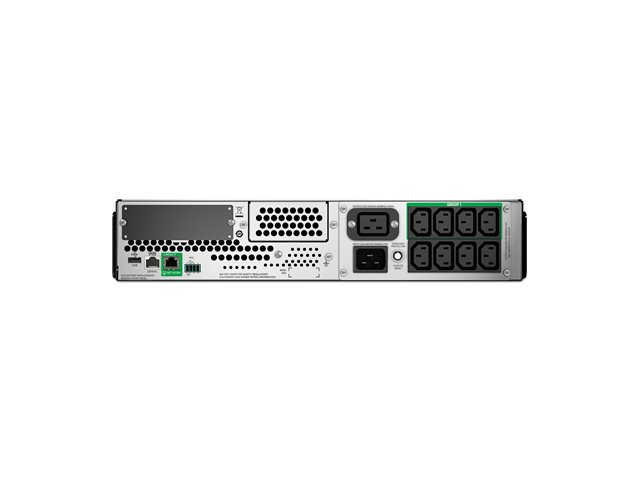

| Input-stik | 1 x strøm IEC 60320 C20 |
| Detaljer om strømudgangskonnektorer | 8 x power IEC 60320 C13
1 x strøm IEC 60320 C19 |
| Udgangspænding | AC 220/230/240 V 50/60 Hz |
| Strømkapacitet | 1980 Watt / 2200 VA |
| Bølgeform udgang | Sinewave |
| Overspændingsafledning | Ja |
| Batteri |
| Antal | 1 |
| Teknologi | Blysyre |
| Egenskaber | Vedligeholdelsesfri, lukket, læksikker |
| Netværk |
| Grænseflade til fjernstyring | RS-232, USB |
| Ekspansion / Konnektivitet |
| Interface | 1 x administration (RS-232) - RJ-45
1 x administration (USB) |
| Ekspansionsåbninger | 1 (total) / 1 (fri) x SmartSlot |
| Diverse |
| Egenskaber | Hørlig alarm, LCD-skærm |
| Overensstemmelsesstandarder | VDE, EN 62040-2, EN 62040-1, RCM, EAC |
| Programmer / Systemkrav |
| Med software | APC PowerChute Business Edition |
| Mål og vægt |
| Bredde | 48 cm |
| Dybde | 68.3 cm |
| Højde | 8.6 cm |
| Vægt | 42.31 kg |
| Oplysninger om kompatibilitet |
| Designet for | P/N: ACCS1000, ACCS1001, ACCS1002, ACCS1003, ACCS1004, ACCS1005, ACCS1006, ACCS1007, ACDC1015, ACDC1016, ACDC1017, ACDC1019, ACDC1020, ACDC1021, ACDC2513, ACF002, ACF101BLK, ACF102BLK, ACF400, AP5017, AP5602, AP5606, AP5607, AP5616, AP92200, AP9290, AR202, AR203A, AR204A, AR2101, AR2102BLK, AR2144BLK, AR2145BLK, AR2200, AR2280, AR2400, AR2400FP1, AR2401, AR2407, AR2480, AR2487, AR2487G, AR2500, AR2507, AR2580, AR2587, AR2900, AR2901, AR3000, AR3003, AR3003SP, AR3006, AR3006SP, AR3100, AR3100G, AR3100SP, AR3100SP1, AR3100SP2, AR3100TAA, AR3100W, AR3100X609, AR3100X610, AR3100X617, AR3101, AR3103, AR3103SP, AR3104, AR3104SP1, AR3105, AR3105SP, AR3105W, AR3106, AR3106SP, AR3107, AR3107G, AR3107SP, AR3107X609, AR3107X610, AR3107X617, AR3130, AR3140, AR3140G, AR3140W, AR3150, AR3150SP, AR3150SP1, AR3150SP2, AR3150W, AR3150X609, AR3150X610, AR3150X617, AR3155, AR3155SP, AR3155W, AR3157, AR3157SP, AR3157X609, AR3157X610, AR3157X617, AR3200, AR3300, AR3300G, AR3300SP, AR3300W, AR3300X609, AR3300X610, AR3300X617, AR3305, AR3305SP, AR3305W, AR3307, AR3307SP, AR3307W, AR3307X609, AR3307X610, AR3307X617, AR3340, AR3340G, AR3340W, AR3347, AR3350, AR3350SP, AR3350W, AR3350X609, AR3350X610, AR3350X617, AR3355, AR3355SP, AR3355W, AR3357, AR3357SP, AR3357X609, AR3357X610, AR3357X617, AR3357X674, AR4018, AR4018A, AR4018I, AR4018IA, AR4018IX429, AR4018IX431, AR4018IX432, AR4018SP, AR4018SPX429, AR4018SPX431, AR4018SPX432, AR4018X429, AR4018X431, AR4018X432, AR4024, AR4024A, AR4024I, AR4024IA, AR4024IX429, AR4024IX431, AR4024IX432, AR4024SP, AR4024SPX429, AR4024SPX431, AR4024SPX432, AR4024X429, AR4024X431, AR4024X432, AR4038, AR4038A, AR4038I, AR4038IA, AR4038IX429, AR4038IX431, AR4038IX432, AR4038X432, AR7007, AR7050, AR7057, AR9300SP, AR9300SP-R, AR9307SP, AR9307SP-R, NBWL0356A |
|
